Corrugated Metal Culvert: Engineering Selection Guide, Specifications & Comparative Data

This guide is written for civil engineers, project managers, and procurement specialists who need to select the right culvert solution. Instead of simply listing advantages, we provide sidebyside comparisons, specification tables, and decision criteria based on real design parameters (ASTM A796 / AASHTO M36)

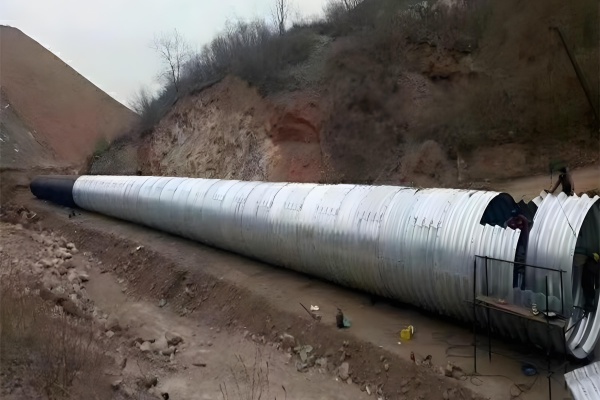

1. Quick Comparison – Corrugated Metal Culvert (CMC) vs Reinforced Concrete Pipe (RCP)

When comparing CMC to traditional reinforced concrete pipe (RCP) of the same diameter, several key differences emerge. CMC offers a typical span range of 0.5 to 12 meters, while RCP is generally limited to 0.6 to 4.5 meters for nonarched shapes. In terms of fill height, CMC can handle up to 30 meters with proper gauge selection, whereas RCP usually maxes out at 10 meters (special designs can reach 20 meters but at significant extra cost).

Weight is another major differentiator: a onemeter length of DN1000 CMC weighs only 25–35 kilograms, compared to 250–350 kilograms for the same size RCP. This directly impacts installation. A 10meter CMC section can be installed by two or three workers in just 2 to 4 hours without any heavy machinery. RCP installation typically requires a crane and concrete trucks, taking one to two days for the same length.

Service life also differs significantly. In normal soil, standard galvanized CMC (≥84 µm coating) lasts 80 to 100 years, while RCP lasts 50 to 75 years due to rebar corrosion. In acidic or saline soil, CMC with additional bituminous coating can exceed 80 years, but RCP often suffers spalling and fails within 30 to 50 years. For frostprone regions, CMC performs excellently with no cracking, whereas RCP is prone to scaling and rebar corrosion from freezethaw cycles.

CMC is flexible and tolerates differential settlement well, avoiding the “bump at the bridgeculvert transition” common with rigid RCP. Initial material cost per meter is lower or comparable for CMC, and its 50year lifecycle cost is very low because it requires almost no maintenance. RCP has mediumtohigh lifecycle costs due to crack repair and joint sealing. The rule of thumb is: if your fill height exceeds 8 meters, site access is limited, the area is cold, or the soil is poor, CMC is the default choice.

2. Technical Specification Checklist for Procurement and Design

Before ordering, you need to specify several technical parameters. The nominal diameter can range from 500 mm to 12,000 mm, available in round, arch, or pipearch shapes. Wall thickness typically ranges from 1.6 mm to 8.0 mm, selected based on fill height and required corrosion allowance. Common corrugation profiles are 68×13 mm, 75×25 mm, and 150×50 mm; larger waves provide higher stiffness.

Steel grade should be at least S235JR or S355JR (minimum yield 235–355 MPa). Galvanizing coating must average ≥84 µm (610 g/m²), complying with ISO 1461 or ASTM A123. For aggressive soil with pH below 5.5, an optional bituminous coating of 0.3 to 0.5 mm on each side is recommended. A corrosion allowance of 0.5 to 1.0 mm extra wall thickness beyond the structural calculation is standard practice. Connections are made with bolted flanges (grade 8.8) or socket joints, sealed with butyl or rubber gaskets. Standard section lengths are 3 m, 6 m, 9 m, or 12 m, but custom lengths are available.

For minimum wall thickness based on fill height (circular pipe with 68×13 corrugation), use the following guidance: for fill height 1–4 meters, specify 1.6–2.0 mm; for 4–8 meters, 2.0–2.5 mm; for 8–15 meters, 2.5–3.5 mm; and for 15–30 meters, 3.5–5.0 mm (engineered calculation required). Always refer to sitespecific structural analysis following AASHTO LRFD Bridge Design Specifications.

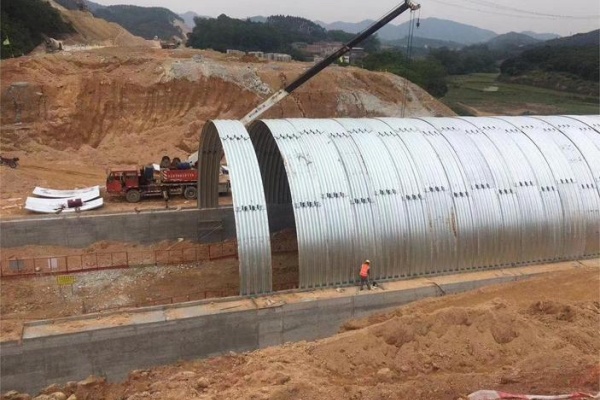

3. Decision Matrix by Project Condition

The best way to decide if CMC is right for your project is to evaluate your specific site conditions. For deep fill exceeding 10 meters, CMC is ideal because of its light weight and high ring stiffness. On soft soil, peat, or swamp, CMC is also ideal because its flexible structure follows settlement without creating a rigid step that causes road bumps.

If you have a tight budget and short construction window, CMC is ideal because it installs 50 to 80 percent faster and requires less machinery. For low fill under 1.5 meters beneath a highway, CMC is acceptable but you must verify live load capacity; concrete encasement may be needed. Only in cases of very high abrasion – such as yearly sand or gravel flow – should you exercise caution; consider polymer coating or thicker steel, and compare with HDPE alternatives.

4. Corrosion and Service Life – How to Specify for Your Site.

A common engineering question is what coating is needed for a 100year design life. The answer depends on soil corrosivity, which you can determine using ASTM G57 resistivity testing

If soil resistivity exceeds 10,000 ohmcm (low corrosivity), standard galvanizing of at least 84 µm is sufficient. For resistivity between 3,000 and 10,000 ohmcm (moderate corrosivity), specify galvanizing plus a 0.3 mm bituminous coating. For resistivity below 3,000 ohmcm (high corrosivity), you need galvanizing, a 0.5 mm bituminous coating, and an extra 0.5 mm of wall thickness as corrosion allowance.

The typical corrosion rate for galvanized steel in neutral soil is 0.01 to 0.03 mm per year. For a 100year design life in aggressive environments, engineers add 0.5 to 1.0 mm extra wall thickness beyond the structural requirement. A clear specification would state: “Provide an additional 0.5 mm wall thickness beyond the structural requirement for corrosion allowance. In high corrosivity environments, increase to 1.0 mm and add double bituminous coating.”

5. PrePurchase Checklist for Procurement

To avoid mistakes when requesting quotes, ensure your RFQ includes the following items: nominal diameter or span in meters, fill height at crown in meters, soil type and resistivity (ohmcm) or pH, required design life in years, frost line depth or freeze index, vehicle load standard (HL93, HS20, or local), preferred corrugation profile, galvanizing thickness (≥84 µm), whether bituminous coating is required and its thickness, connection type (bolted flange or socket), installation method (manual or machinery assisted), and delivery length per section. Suppliers who respond with a complete technical datasheet – including calculated fill height versus wall thickness – are more reliable.

6. Summary – From “Good Product” to “Correct Selection”

The original article explained why corrugated metal culverts are strong, durable, and economical. This guide adds the missing layer: how to select the right grade, coating, wall thickness, and connection type for your specific site conditions. The key takeaway for engineers and buyers is this: do not specify “corrugated metal culvert” without defining fill height, soil corrosivity, and required design life. Use the selection matrix and specification checklist above to ensure an 80 to 100year service life with minimum maintenance. For further design support, refer to ASTM A796/A796M, AASHTO LRFD Bridge Design Specifications Section 12, or ISO 1461 for galvanizing.
