Corrugated Steel Pipe Culverts: Engineering Excellence for Modern Infrastructure
Corrugated steel pipe culverts represent a sophisticated engineering solution for drainage and infrastructure applications worldwide. This technical examination explores the structural mechanics, material science, and hydraulic performance that establish Corrugated steel pipe culverts culverts as the premier choice for critical infrastructure projects. With advanced manufacturing techniques and engineered coatings, modern Corrugated steel pipe culverts systems deliver exceptional longevity and performance across diverse environmental conditions.
Contemporary Corrugated steel pipe culverts culverts utilize high-strength, low-alloy (HSLA) steels with yield strengths ranging from 230 MPa to 550 MPa, depending on application requirements. The corrugation profile—typically 68×13 mm or 75×25 mm—creates a moment of inertia that significantly enhances section modulus and buckling resistance. This structural efficiency allows Corrugated steel pipe culverts installations to withstand extreme loading conditions, including AASHTO HL-93 live loads and overburden pressures exceeding 15 meters.
The fundamental structural advantage lies in the composite soil-structure interaction system. Corrugated steel pipe culverts culverts demonstrate remarkable flexibility, distributing earth pressures through the surrounding soil matrix rather than resisting them through rigid strength. This flexibility enables controlled deflection (typically 3-5% diameter change) without structural compromise, effectively transforming potential weaknesses into performance advantages.
Modern Corrugated steel pipe culverts production employs automated spiral-rolling machinery that forms continuous helical seams with consistent penetration welds. This manufacturing precision ensures uniform structural characteristics along the entire culvert length, with diameter tolerances maintained within ±0.5%.
Corrosion protection systems have evolved significantly from basic galvanization:Triple-Protection Systems: Combining 86 µm zinc coating, epoxy-polymer barrier coating, and sacrificial anode protection for 100+ year service life in aggressive environments, Aluminized Steel Type 2: Aluminum-silicon alloy coating providing exceptional resistance to acidic waters (pH 3-5) and industrial pollutants. Polymer-Bonded Coatings: 500-1000 µm thick laminate coatings for abrasion resistance in high-velocity flow applications
The corrosion performance is quantifiably demonstrated through standardized testing protocols, including ASTM A796 salt spray exposure and electrochemical impedance spectroscopy, validating protection periods exceeding 75 years even in severely corrosive environments.
Advanced design methodologies now incorporate finite element analysis (FEA) to model soil-structure interaction under specific site conditions, enabling precise prediction of long-term performance and deformation characteristics.

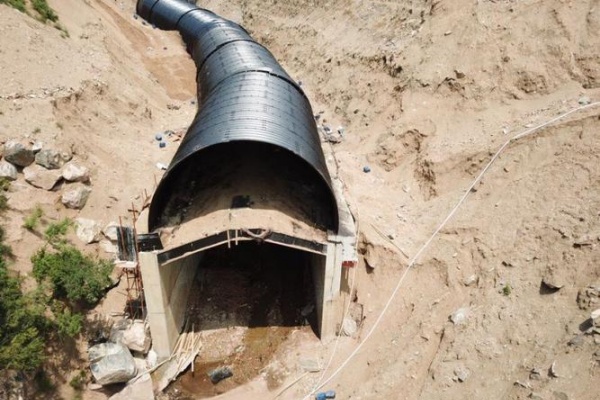

Recent engineering advancements have expanded Corrugated steel pipe culverts applications beyond traditional drainage: Tunnel Construction: Segmental Corrugated steel pipe culverts tunnels with bolted connections for pedestrian and utility passages, Arching Technology: Structural plate arches spanning up to 12 meters for bridge replacements, Retention/Detention Systems: Modular storm water management systems with integrated monitoring technology, Tren chless Installations: Pipe jacking and micro tunneling applications with specialized abrasion-resistant coatings, The Minnesota Department of Transportation's I-35E project demonstrates Corrugated steel pipe culverts capabilities, where 3.6-meter diameter Corrugated steel pipe culverts culverts were installed with 2.5-meter cover beneath eight traffic lanes, supporting over 1,200 kPa design pressure with minimal deformation.
Corrugated steel pipe culverts represent the synthesis of materials science, structural engineering, and environmental science. Their demonstrated performance, quantified through decades of research and field validation, establishes Corrugated steel pipe culverts as the technical superior choice for drainage infrastructure. As engineering challenges grow more complex with increasing environmental demands and load requirements, Corrugated steel pipe culverts culverts continue to evolve through innovation and refinement, maintaining their position as the benchmark technology in subsurface drainage infrastructure. Engineering professionals specifying Corrugated steel pipe culverts culverts can be confident in selecting a solution that provides optimal structural performance, long-term durability, and economic efficiency throughout the project lifecycle.
